Apache Webserver

Todo

** Add explanations about .conf both **

Introduction

In this article, we will installed the Apache webserver. It is installed into a VM, which is running in Proxmox. For the installation of a VM in Proxmox, refer to Proxmox 6.2. The VM is based on Debian. Nevertheless this step-by-step guide is also valid for a native machine.

System configuration

User creation

Add a new user sphinx. It will be a system user and belong to the group www-data:

adduser --system sphinx --ingroup www-data

Change the password of the new user:

passwd sphinx

Webserver installation

Under a Debian OS, Apache server installation is simple as:

sudo apt-get install apache2

Apache configuration

For safety reasons, comment all following lines in the file /etc/apache2/apache2.conf:

#<Directory /usr/share>
#       AllowOverride None
#       Require all granted
#</Directory>

#<Directory /var/www/>
#       Options Indexes FollowSymLinks
#       AllowOverride None
#       Require all granted
#</Directory>

In order to forward http requests toward https server, activate the rewrite module:

sudo a2enmod rewrite

In order to communicate with Apache server in https mode, a certificate will be created. It allows a secure communication between client and server. OpenSSL will be used to create it. It should be already installed on the system. Create new certificate:

sudo openssl req -x509 -nodes -days 365 -newkey rsa:2048 -keyout /etc/ssl/private/sphinx-selfsigned.key
-out /etc/ssl/private/sphinx-selfsigned.crt

Note

A certificate must be used for a communication in https mode. A selfsigned certificate will be created on the server. But this certificate is not signed by an authority. This is why a warning will be displayed on client browser, only for LAN local access. For access from WAN side, a certificate signed by Let’s Encrypt is used by pfSense. Thus, no warning will be displayed.

Web site configuration

http mode

Add an Apache configuration file /etc/apache2/site-available/sphinx.conf:

<VirtualHost *:80>
  ServerName sphinx.legibus.fr
  ServerAlias 192.168.1.9
  DocumentRoot "/rep/to/the/site/web/"

  ErrorLog ${APACHE_LOG_DIR}/error.log
  CustomLog ${APACHE_LOG_DIR}/access.log combined

  Protocols h2 http/1.1

  <IfModule mod_rewrite.c>
    Redirect permanent / https://sphinx.legibus.fr/
  </IfModule>

  Header set X-Robots-Tag "noindex, noarchive, nofollow"

  <Directory "/rep/to/the/site/web/">
    Require all denied

    # AllowOverride none et AllowOverrideList none to ignore access to .htaccess
    AllowOverride AuthConfig
    AllowOverrideList none

    Options -Indexes +FollowSymlinks +Includes +MultiViews
    Order allow,deny
    Allow from all

    Header set X-Robots-Tag "noindex, noarchive, nofollow"

    SetEnv HOME /rep/to/the/site/web/
    SetEnv HTTP_HOME /rep/to/the/site/web/
    Satisfy Any
  </Directory>

  <Directory /rep/to/the/site/web/blog/>
    #blog et work to be protected
    AuthName "Restricted area !"
    AuthBasicProvider file
    AuthUserFile /usr/local/apache/passwd/passwords
    AuthGroupFile /usr/local/apache/passwd/groups
    Require user web
  </Directory>

</VirtualHost>

Pour le second pointfefeaf/

Then, enable the configuration:

sudo a2ensite sphinx.conf

Finally, reload the Apache server:

sudo systemctl reload apache2

https mode

Add an Apache configuration /etc/apache2/site-available/sphinx-ssl.conf:

<IfModule mod_ssl.c>
  <VirtualHost *:443>
    ServerName sphinx.legibus.fr
    ServerAlias 192.168.1.9
    DocumentRoot "/rep/to/the/site/web/"

    ErrorLog ${APACHE_LOG_DIR}/error.log
    CustomLog ${APACHE_LOG_DIR}/access.log combined

    SSLEngine on

    SSLCertificateFile /path/to/certificate/sphinx-selfsigned.crt
    SSLCertificateKeyFile /path/to/certificate/sphinx-selfsigned.key

    Protocols h2 http/1.1

    Header set X-Robots-Tag "noindex, noarchive, nofollow"

    <Directory "/rep/to/the/site/web/">

      Require all denied

      # AllowOverride none et AllowOverrideList none pour ignorer l'acces à .htaccess
      AllowOverride none
      AllowOverrideList none

      Options -Indexes +FollowSymlinks +Includes
      Order allow,deny
      Allow from all

      SetEnv HOME /rep/to/the/site/web/
      SetEnv HTTP_HOME /rep/to/the/site/web/
      Satisfy Any
    </Directory>

    <Directory /rep/to/the/site/web/blog/>
      #blog et work to be protected
      AuthName "Restricted area !"
      AuthBasicProvider file
      AuthUserFile /usr/local/apache/passwd/passwords
      AuthGroupFile /usr/local/apache/passwd/groups
      Require user web
    </Directory>

  </VirtualHost>
</IfModule>

SSLProtocol           all -SSLv3 -TLSv1 -TLSv1.1
SSLHonorCipherOrder   off
SSLCipherSuite        ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:
ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:
ECDHE-RSA-CHACHA20-POLY1305:DHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES256-GCM-SHA384
SSLSessionTickets     off

SSLUseStapling On
SSLStaplingCache "shmcb:logs/ssl_stapling(32768)"

Then, enable the configuration:

sudo a2ensite sphinx-ssl.conf

Finally, reload the Apache server:

sudo systemctl reload apache2

Firewall configuration

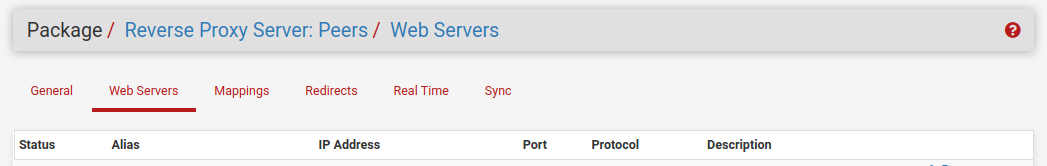

In order to access to the webserver from the WAN, the Squid Reverse Proxy of pfsense is used. Open menu Services ‣ Squid Reverse proxy ‣ Web Servers:

link error !!

Fig. 50 Webserver list

Add a new webserver with the local IP and the port to reach it (ie with port 80 (http) see Fig. 51):

link error !!

Fig. 51 Webserver mapping

Note

Make the same with the same local IP but replace port 80 with the port 443 (https).

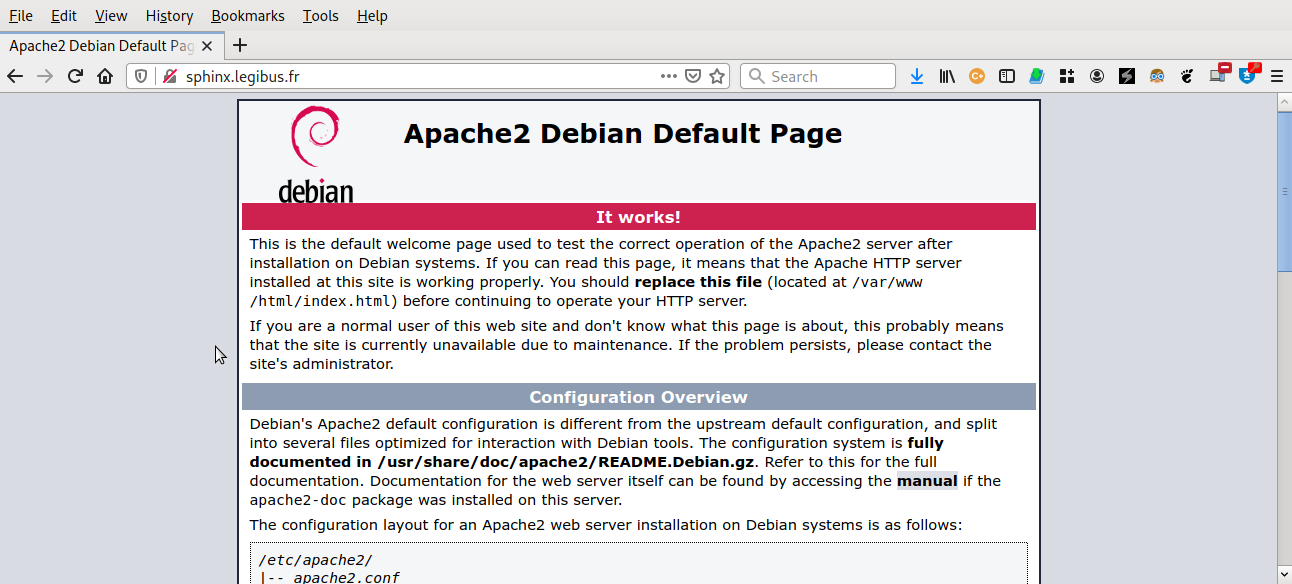

It is time to check if the webserver is reachable from the WAN. If the Apache default web page can be read (see Fig. 52):

link error !!

Fig. 52 Apache default web page

Final configuration

Once the default Web site is available, it can be disable:

sudo a2dissite 000-default.conf

And all html files should be placed into the root of the server (“/rep/to/the/site/web/” in the example).
